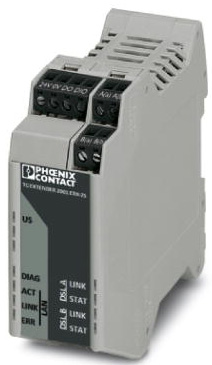

TC EXTENDER 2001 ETH-2S
Long Range Ethernet Extender
- Transmit Ethernet data up to 20km
- Automatic SHDSL data rate detection
- Network transparent (no IP configuration required)
- Protocol transparent
The TC EXTENDER transparently extends Ethernet data transmission up to 20 km across single twisted pair (CAT5/6/7), coax or any existing copper wiring previously used in alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV applications.
Long Distance Ethernet Transmission over Copper
SHDSL is the technology of choice for the transmission of digital data over long distance copper wires of a network. Although performance depends on the characteristics of the cable used, the reach of SHDSL is much further than any other DSL technology currently available. In addition, upload and download bandwidth is symmetrical boasting data rates as high as 15.3 Mbps over 2-wire copper and 30 Mbps over 4-wire copper.
The TC EXTENDER is protocol transparent. With two SHDSL ports you can easily set up point-to-point, linear or ring network structures with ranges of up to 20 km. These simple and effective Ethernet Extenders are perfect for industrial environments, commercial buildings, residential units, hospitality environments, connecting a remote office or private-network backbone to a corporate LAN … anywhere you need Ethernet communication links between separated LANs or LAN devices (i.e. PCs, digital sensors, VoIP phones, WiFi APs, IP cameras and more).
Two software configurable digital outputs are available for external device alarm generation.
For “plug and play” long distance Ethernet data transmission, the TC EXTENDER 2001 ETH-2S is the ideal solution.
Long Distance Ethernet Extender Features
- Robust modulation method (SHDSL)
- Future proof (IPv4 and IPv6-compatible)
- Automatic detection of network cable type (auto MDI(X))
- Automatic network data rate detection (10/100 Mbps)
- Easy startup, plug and play
- Two alarm and signal outputs
TC EXTENDER 2001 ETH-2S Technical Specifications
Serial interface
Interface 1
Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
Interface
Ethernet
Connection method
- RJ45 socket, shielded
- 1 port 10/100Base-T(X), auto negotiation
Transmission length
< 100 m (shielded twisted pair)
Protocols supported
Protocol-transparent for TCP/IP, IPv4, and IPv6
Serial transmission speed
10/100 Mbps, auto negotiation
Interface 2
SHDSL interface according to ITU-T G.991.2.bis
No. of channels
2 (2-wire operation)
Connection method
2 x 2-pos. COMBICON plug-in screw terminal blocks
Transmission length
< 20 km (Depending on data rate and cable cross section)
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Serial transmission speed
- 4-wire operation: 64 kbps ... 30 Mbps
- 2-wire operation: 32 kbps ... 15.3 Mbps
Interface 3
USB 2.0
Connection method
Mini-USB type B, 5-pos.
Transmission length
< 5 m (only for configuration and diagnostics)
Digital outputs
Output name
Digital output
Number of outputs
2
Voltage output signal
depending on the operating voltage
Current output signal
≤ 150 mA (Short-circuit-proof)
Connection method
2 x 2-pos. COMBICON plug-in screw terminal blocks
Behavior of the outputs
Deactivated for device supply via DIN rail connector
Function
Management
Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders)
Status and diagnostic indicators
- LEDs: US (supply voltage), ACT/LINK (Ethernet data traffic), ERR (errors)
- 2x LINK / 2x STAT (DSL data traffic port A and port B), DIAG (diagnostic messages)
Ambient Conditions
Ambient temperature (operation)
-20°C ... 60°C (Freestanding (40 mm spacing to the right and left), no supply of other modules via the device)
-20°C ... 55°C (Mounted in rows with zero spacing and low power dissipation of aligned modules)
-20°C ... 50°C (Mounted in rows with zero spacing)
-20°C ... 45°C (Mounted in rows with zero spacing and supply of other modules via the device)
Ambient temperature (storage/transport)
-40°C ... 85°C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Altitude
5000 m (For restrictions see manufacturer's declaration)
Degree of protection
IP20
General
Electrical isolation
VCC // Ethernet // DSL (A) // DSL (B) // FE
Test voltage data interface/power supply
1.5 kVrms (50 Hz, 1 min.)
Standards/regulations
EN 50121-4
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Net weight
258.7 g
Housing material
PA 6.6-FR
Color
gray
MTTF
- 711 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
- 308 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25 % (5 days a week, 12 hours a day))
- 125 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance
CE-compliant
Power supply
Nominal supply voltage
- 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
- 5 V DC (configuration only, via mini-USB type B)
Supply voltage range
18 V DC ... 30 V DC
Typical current consumption
< 180 mA (24 V DC)
Connection method
COMBICON plug-in screw terminal block
Dimensions
Width
35 mm
Height
99 mm
Depth
114.5 mm
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Vibration resistance
In acc. with EN 60068-2-6/IEC 60068-2-6
Result: 5g, 10...150 Hz, 2.5 h, in XYZ direction
Shock
In acc. with EN 60068-2-27/IEC 60068-2-27
Result: 15g
EMC Immunity
- EN 61000-4-2: Contact discharge ± 6 kV, Indirect discharge ± 6 kV
- EN 61000-4-3: Frequency range 80 MHz ... 3 GHz
- EN 61000-4-4: Criterion B
- EN 61000-4-5: Signal ± 1 kV (asymmetrical, shielded Ethernet cable)
- EN 55011
- EN 61000-4-6: Frequency range 0.15 MHz ... 80 MHz
- EN 50121-4
Conformance
CE-compliant
ATEX
II 3 G Ex nA IIC T4 Gc X
UL, USA/Canada
cULus listed UL 508
Approvals
- UL Listed
- cUL Listed
- ATEX
- cULus Listed
Commercial data
Packing unit
1
Weight per piece
0.0 g
Country of origin
Germany
Application Diagrams
Point-to-point connection
Line structure
Star structure
Redundant ring structure
The paths of the SHDSL ring should show a very high connection quality during normal operation. If that is not the case, the reaction time can deviate from the value calculated above.
Redundant data communication in rotating applications
Range
Figure 1: SHDSL data rate depending on the distance,2-wire
Calculation of SHDSL data rates using the PSI-SHDSL Calculator
Watch this tutorial you learn how to calculate the theoretical maximum data rate of an SHDSL line quick and easy with the software PSI-SHDSL Calculator. Overall, the software helps you to plan your project with more reliability.
