S-100MM Fast Ethernet Media Converters
100Base-FX to 100Base-X Fiber Mode Conversion
- 100Base-FX to 100Base-X Fiber to Fiber Media Converters
- Multimode to multimode or multimode to single mode
- Extend multimode fiber to 120km ( or more through chaining )
- Choice in SC, LC and ST fiber connector models
- Signal regeneration prevents signal degradation
- Advanced Features: Link Pass-Through, Far-End Fault, loopback for each fiber connection
Perle's feature rich S-100MM Fast Ethernet Fiber to Fiber Media Converters enable transparent fiber extension of 100Base-FX multimode fiber to 100Base-FX multimode or 100Base-LX/EX/ZX/BX single mode fiber.
Perle's advanced features make the end to end fiber link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. In addition, a lifetime warranty and free worldwide technical support make Perle's S-100MM Fast Ethernet Fiber to Fiber Media Converters the smart choice for IT professionals.
Whether you need to extend multimode to multimode or multimode to single mode, Perle has an extensive range of S-100MM Fast Ethernet Fiber to Fiber Media Converters to meet your fiber conversion requirement.
S-100MM Fiber to Fiber Features: 100Base-FX to 100Base-X
|
When enabled, the state of the receiver on one 100Base-X interface is reflected on the other 100Base-X fiber transmitter. If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-X fiber interface has no effect on the other interface. Using Link Pass-Through with Far-End Fault minimizes data loss when a fault occurs. If a fault occurs, the end devices have the indication of a failure available to making trouble shooting easier. |
|
|
Far-End Fault (FEF) |
When enabled, the media converter transmits the Far-End Fault Indication over the fiber connection whenever a receive failure is detected. The media converter continuously monitors the fiber connection and clears the Far-End Fault Indication condition when a valid signal is received. When disabled, Far-End Fault Indications are not transmitted regardless of the condition of the receive signal on the 100Base-X fiber connection. The action the media converter takes on receiving a Far-End Fault Indication is dependent on the Link Pass-Through switch setting. |
|
Signal Regeneration |
Signal regeneration maintains signal integrity and allows for maximum fiber to fiber connections without degradation. |
|
Cascading |
Media converters can be cascaded. Two or more media converters can be chained in a link to achieve even greater distances. |
|
Pause (IEEE 802.3xy) |
Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The fast ethernet media converter supports pause negotiation on the 100Base-TX copper connection. |
|
VLAN |
The media converter is transparent to VLAN tagged packets. |
|
Remote Loopback |
The media converter can perform a loopback on each 100Base-X fiber interface. |
Hardware & Technical Specifications: S-100MM Fast Ethernet Media Converters
Power
Input Supply Voltage
6 - 30 vDC, unregulated (12 vDC Nominal)
Current
0.29 amps
Power Consumption
3.5 watts
Power Connector
5.5mm x 9.5mm x 2.1mm barrel socket
Power Adapter
Universal AC/DC Adapter
100-240v AC, regulated DC adapter included
Indicators
Power / TST
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Fiber link 1 / Receive activity (LK1)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Fiber link 2 on / Receive activity (LK2)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Switches - accessible through a side opening in the chassis
Link Pass Through
Enabled (Default) - When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter. If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.
Far-End Fault (FEF)
- Enabled (default) - The media converter transmits the Far-End Fault Indication over the fiber connection whenever a receive failure is detected. The media converter continuously monitors the fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface.
Remote Loopback #1
- Disabled (Default - Up)
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
Remote Loopback #2
- Disabled (Default - Up)
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
Cables
Fiber Optic Cable
- Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron
- Single Mode: 9/125 micron (ITu-T 625)
Packet Transmission Characteristics
Bit Error Rate (BER)
<10 -12
Environmental Specifications
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
minimum range of -25°C to 70°C (-13°F to 158°F)
Operating Humidity
5% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Operating Altitude
Up to 3,048 meters (10,000 feet)
Heat Output (BTU/HR)
11.9
MTBF
- Without power adaptor: 503,679 Hours
- With power adaptor: 302,090 Hours
Calculation model based on MIL-HDBK-217-FN2 @ 30°C
Chassis
Metal with an IP20 ingress protection rating
Mounting
Din Rail Kit
Optional
Rack Mount Kit
Optional
Product Weight and Dimensions
Weight
0.3 kg, 0.66 lbs
Dimensions (W x H x D)
120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches
Packaging
Shipping Weight
0.55 kg, 1.2 lbs
Shipping Dimensions
170 x 280 x 70 mm, 6.7 x 10.2 x 2.8 inches
Regulatory Approvals
Emissions
- FCC Part 15 Class B*, EN55022 Class B*
- CISPR 22 Class B*
- CISPR 32:2015/EN 55032:2015 (Class A)
- CISPR 24:2010/EN 55024:2010
- EN61000-3-2
Immunity
EN55024
Safety
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- UL 60950-1
- IEC 60950-1(ed 2); am1, am2
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- CE
Laser Safety
- EN 60825-1
- Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental
Other
- ECCN: 5A991
- HTSUS Number: 8517.62.0020
- Perle Limited Lifetime Warranty
* When used with a Class B rated AC power adapter.
Select a Model to obtain a Part Number - S-100MM Fast Ethernet Fiber to Fiber Media Converter Module
| Model | Port |
Connector |
Type |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dBm) |
Wavelength
(nm) |
Fiber
Type |
Operating
Distance |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
Min |
Max |
Min |
Max |
||||||||
| S-100MM-M2ST2 | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
|
| S-100MM-M2SC2 | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
|
| S-100MM-M2LC2 | Port 1 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
|
| S-100MM-S2ST20 | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual ST |
100BASE-LX |
-18.0 |
-7.0 |
-32.0 |
-3.0 |
14.0 |
1310 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S2SC20 | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual SC |
100BASE-LX |
-18.0 |
-7.0 |
-32.0 |
-3.0 |
14.0 |
1310 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S2LC20 | Port 1 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual LC |
100BASE-LX |
-15.0 |
0.0 |
-34.0 |
-5.0 |
19.0 |
1310 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S2ST40 | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual ST |
100BASE-EX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1310 |
SMF |
40 km
(25 mi) |
|
| S-100MM-S2SC40 | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual SC |
100BASE-EX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1310 |
SMF |
40 km
(25 mi) |
|
| S-100MM-S2LC40 | Port 1 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual LC |
100BASE-EX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1310 |
SMF |
40 km
(25 mi) |
|
| S-100MM-S2ST80 | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual ST |
100BASE-ZX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1550 |
SMF |
80 km
(50 mi) |
|
| S-100MM-S2SC80 | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual SC |
100BASE-ZX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1550 |
SMF |
80 km
(50 mi) |
|
| S-100MM-S2LC80 | Port 1 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual LC |
100BASE-ZX |
-5.0 |
0.0 |
-34.0 |
-3.0 |
29.0 |
1550 |
SMF |
80 km
(50 mi) |
|
| S-100MM-S2ST120 | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual ST |
100BASE-ZX |
0.0 |
5.0 |
-35.0 |
-3.0 |
35.0 |
1550 |
SMF |
120 km
(75 mi) |
|
| S-100MM-S2SC120 | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual SC |
100BASE-ZX |
0.0 |
5.0 |
-35.0 |
-3.0 |
35.0 |
1550 |
SMF |
120 km
(75 mi) |
|
| S-100MM-S2LC120 | Port 1 | Dual LC |
100BASE-FX |
-20.0 |
-12.0 |
-30.0 |
-14.0 |
10.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Dual LC |
100BASE-ZX |
0.0 |
5.0 |
-34.0 |
-3.0 |
34.0 |
1550 |
SMF |
120 km
(75 mi) |
|
Single Fiber Models Recommended use in pairs
| Model | Port |
Connector |
Type |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dBm) |
Wavelength
(nm) |
Fiber
Type |
Operating
Distance |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
Min |
Max |
Min |
Max |
||||||||
| S-100MM-S1ST20U | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single ST |
100BASE-BX |
-14.0 |
-8.0 |
-32.0 |
-3.0 |
18.0 |
1310/1550 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S1ST20D | Port 1 | Dual ST |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single ST |
100BASE-BX |
-14.0 |
-8.0 |
-32.0 |
-3.0 |
18.0 |
1550/1310 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S1SC20U | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single SC |
100BASE-BX |
-14.0 |
-8.0 |
-32.0 |
-3.0 |
18.0 |
1310/1550 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S1SC20D | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single SC |
100BASE-BX |
-14.0 |
-8.0 |
-32.0 |
-3.0 |
18.0 |
1550/1310 |
SMF |
20 km
(12.4 mi) |
|
| S-100MM-S1SC40U | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single SC |
100BASE-BX |
-8.0 |
-3.0 |
-33.0 |
-3.0 |
25.0 |
1310/1550 |
SMF |
40 km
(25 mi) |
|
| S-100MM-S1SC40D | Port 1 | Dual SC |
100BASE-FX |
-20.0 |
-12.0 |
-31.0 |
-14.0 |
11.0* |
1310 |
MMF |
2 km
(1.2 mi) |
| Port 2 | Single SC |
100BASE-BX |
-8.0 |
-3.0 |
-33.0 |
-3.0 |
25.0 |
1550/1310 |
SMF |
40 km
(25 mi) |
|
The minimum fiber cable distance for all converters listed is 2 meters.
*Based on use with 62.5/125 micron multimode fiber.
Application Diagrams
Fast Ethernet Fiber Switch to Fiber Switch
Two Fast Ethernet Media Converters can extend the distance between Fiber Switches across a fiber link up to 120km in length.
Single Mode/Single Strand (WDM) Fiber
When Single Strand fiber is used, a pair of Single Fiber Media Converters is needed for the fiber to fiber conversion. Perle Single Fiber Media Converters are also referred to as “Up/Down” models. For example the S-100MM-S1SC20U (“Up”) and S-100MM-S1SC20D (“Down”), shown below, must be used in pairs. An “Up” must be matched with a “Down” peer to deal with transmit and receive frequencies separately.
S-100MM-S1SC20US-100MM-S1SC20D
The majority of installations for single mode fiber media converters are of the “dual connector” or “dual fiber” type where one fiber connection is used for transmit, the other for receive. These are physically “crossed” to match up the Transmit/Receive links.
However, to reduce costs, or where there are limits on available fiber, WDM technology may be utilized. WDM uses separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength. Thus, a single fiber can carry many separate wavelength signals or channels simultaneously.
So remember, if Single Strand fiber is used, you will need an “Up” Media Converter on one side and a “Down” Media Converter on the other for fiber to fiber conversion.
Perle offers a wide variety of Single Fiber (“Up/Down”) Media Converters to connect 10BaseT, Fast Ethernet and Gigabit to single fiber. Whether you need Managed or Unmanaged, Standalone or Modular Chassis Based, 20km or 120km, Perle has the right model to meet your fiber conversion requirement.
Filter your options to find the right hardware for your application
Viewing 126 of 126 products
Click on a part number for ordering information
Product Image
Product Description
Power Cord & Part No.

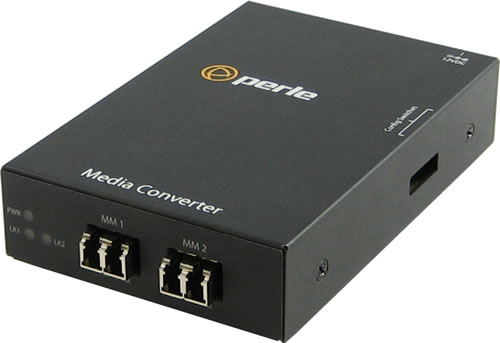

S-100MM-M2SC2 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles]
S-100MM-M2ST2 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles]
S-100MM-M2LC2 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles]
S-100MM-S2SC20 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-LX 1310nm single mode (SC) [20 km/12.4 miles]
S-100MM-S2ST20 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-LX 1310nm single mode (ST) [20 km/12.4 miles]
S-100MM-S2LC20 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100Base-LX 1310nm single mode (LC) [20 km/12.4 miles]
S-100MM-S2SC40 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-EX 1310nm single mode (SC) [40 km/24.9 miles]
S-100MM-S2ST40 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-EX 1310nm single mode (ST) [40 km/24.9 miles]
S-100MM-S2LC40 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100Base-EX 1310nm single mode (LC) [40 km/24.9 miles]
S-100MM-S2SC80 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (SC) [80 km/49.7 miles]
S-100MM-S2ST80 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (ST) [80 km/49.7 miles]
S-100MM-S2LC80 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (LC) [80 km/49.7 miles]
S-100MM-S2SC120 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (SC) [120 km/74.6 miles]
S-100MM-S2ST120 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (ST) [120 km/74.6 miles]
S-100MM-S2LC120 - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (LC) [120 km/74.6 miles]
S-100MM-S1SC20U - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]
S-100MM-S1SC20D - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1550nm TX / 1310nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]
S-100MM-S1SC40U - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (SC) [40 km/24.9 miles]
S-100MM-S1SC40D - Fast Ethernet Fiber to Fiber Stand-Alone Media Converter, 100Base-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1550nm TX / 1310nm RX single strand fiber, single mode (SC) [40 km/24.9 miles]
S-100MM-S1ST20U - Fast Ethernet Fiber to Fiber Media Converter. 100BASE-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (ST) [20 km/12.4 miles]
S-100MM-S1ST20D - Fast Ethernet Fiber to Fiber Media Converter. 100BASE-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-BX 1550nm TX / 1310nm RX single strand fiber, single mode (ST) [20 km/12.4 miles]
Related Accessories
Accessory Image
Accessory Description
Part No.
DIN Rail Mounting Kit for 4 & 8 port IOLAN desktop models, all Stand-Alone Media Converters and all Stand-alone Ethernet Extenders. Two of these brackets are required for the 8 port STS8-D model.
Standalone media converter wall / rack mount bracket
