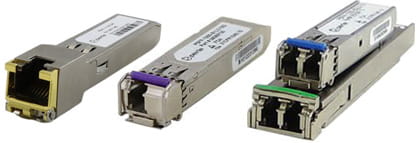

SFP Optical Transceivers
Small Form Pluggable Optical Modules
- Multimode and single-mode fiber
- Gigabit Ethernet, Fast Ethernet, Fiber channel, ATM/SONET, SDH
- Hot-pluggable with durable metal enclosure
- Can be installed in any Cisco or MSA SFF-8472 compliant port
- Enhanced digital diagnostic information
- CWDM modules available supporting standard wavelengths defined by ITU-T G.694.2
- 32°F to 158°F (0°C to 70°C) and -40°F to 185°F (-40°C to +85°C ) SFP case operating temperatures
Perle SFP Optical Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
By eliminating the need to maintain surplus units/ devices of various fiber types for network repairs or upgrades Small Form Pluggable Optical Transceivers reduce network equipment inventories. SFPs allow one product the flexibility to expand by speed (Fast Ethernet and 1, 10, or 40 Gigabit), and/or distance (220 m to 80 km).
Network upgrades are also made easier because SFPs are interchangeable fiber connectors that can adapt to any existing network. For example, by simply replacing the pluggable optical transceiver, a media converter that was originally used in a multimode network can be re-configured to operate over a CWDM network.
Perle SFP Optical Transceivers can be used and interchanged on a wide variety of Cisco or MSA compliant SFP products. They can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Perle SFP Optical Transceivers are designed for use with Perle SFP Media Converters, Industrial Ethernet Switches, IOLAN SCG Console Servers and third party equipment that supports SFP transceivers. Select the appropriate tab above to view Duplex, Simplex(BiDi), CWDM or 10 Gigabit SFP+ and XFP Models.
Perle SFP Transceiver Features
| Broad range of Fiber applications | Popular networking protocols such as Ethernet, Fibre Channel, ATM/SONET OC-X, SDH STM-X can be used with these modules |
| Cisco IOS Compatible | All Perle SFPs can be installed in all Cisco SFP-based routers and switches and are fully compatible with Cisco’s IOS software. |
| MSA SFF-8472 Compliant | All SFPs fully comply with the Multi Sourcing Agreement (MSA). |
| Enhanced digital diagnostic information (DOM or DMI) | Provides readable digital diagnostic information for managed gear to assist network administrators with network maintenance and management |
| Industrial Temperature models | Industrial -40°F to 185°F (-40°C to 85°C) case temperature models are available for extended temperature environments |
| CWDM models | CWDM Pluggable Optical Transceivers increase network capacity by transmitting multiple data channels using separate optical wavelengths (1470nm to 1610nm) on the same fiber pair. These wavelengths are compliant to the ITU G.694 CWDM standard. |
| Safety | EN 60950-1:2006+A11+A1+A12+A2 |
| Emissions |
|
| EMC and Immunity | CISPR 24:2010/EN 55024:2010 |
| Laser Safety |
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
|
| Environmental | Reach, RoHS and WEEE Compliant |
| Other |
|
Select a High Speed Model below to obtain a Part Number -----OR----- Click Here to view Fast Ethernet, SONET OC-3, G.957, SDH STM-1 Models
SFP Model |
Connector |
Speed |
Type |
DOM / DMI |
Temp |
Transmit |
Receive |
Power
Budget
(dB) |
Wave-
length (nm) |
Fiber
Type |
Core
Size
(um) |
Modal
Band-
width (MHz Km) |
Operating
Distance
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(dBm) |
(dBm) |
||||||||||||||
Min |
Max |
Min |
Max |
||||||||||||
| PSFP-1000-M2LC05 | Dual LC | 1.25 Gbps | 1000Base-SX Fibre Channel FICON (Alternate to Cisco: |
No | 0 to 70C (32F to 158F ) |
-9.5 | -4.0 | -17.0 | -3.0 | 7.5 | 850 | MMF | 62.5 | 160 | 220 m (722 ft) |
| 62.5 | 200 | 275 m (902 ft) |
|||||||||||||
| 50 | 400 | 500 m (1,640 ft) |
|||||||||||||
| 50 | 500 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 2000 | 1000 m (3281 ft) |
|||||||||||||
| PSFP-1000D-M2LC05 | Dual LC | 1.25 Gbps | 1000Base-SX Fibre Channel FICON (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-9.5 | -4.0 | -17.0 | -3.0 | 7.5 | 850 | MMF | 62.5 | 160 | 220 m (722 ft) |
| 62.5 | 200 | 275 m (902 ft) |
|||||||||||||
| 50 | 400 | 500 m (1,640 ft) |
|||||||||||||
| 50 | 500 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 2000 | 1000 m (3281 ft) |
|||||||||||||
| PSFP-1000D-M2LC05-XT | Dual LC | 1.25 Gbps | 1000Base-SX Fibre Channel FICON (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-9.5 | -3.0 | -18.0 | -3.0 | 8.5 | 850 | MMF | 62.5 | 160 | 220 m (722 ft) |
| 62.5 | 200 | 275 m (902 ft) |
|||||||||||||
| 50 | 400 | 500 m (1,640 ft) |
|||||||||||||
| 50 | 500 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 2000 | 1000 m (3281 ft) |
|||||||||||||
| PSFP-1000D-M2LC2 | Dual LC | 1.25 Gbps | 1000Base-LX Fibre Channel FICON |
Yes | 0 to 70C (32F to 158F ) |
-9.0 | -1.0 | -19.0 | -1.0 | 10.0 | 1310 | MMF | 62.5 | 160 | 2 km (1.2 mi) |
| 50 | 500 | 1000 m (3281 ft) |
|||||||||||||
| PSFP-1000D-M2LC2-XT | Dual LC | 1.25 Gbps | 1000Base-LX Fibre Channel FICON |
Yes | -40 to 85C (-40F to 185F) |
-9.0 | -1.0 | -19.0 | -1.0 | 10.0 | 1310 | MMF | 62.5 | 160 | 2 km (1.2 mi) |
| 50 | 500 | 1000 m (3281 ft) |
|||||||||||||
| PSFP-2GD-M2LC03 | Dual LC | up to 2.67 Gbps | 1000Base-SX Fibre Channel FC-2 FICON GR253 SONET OC-48 G.957 SDH STM-16 |
Yes | 0 to 70C (32F to 158F ) |
-10 | -3 | -18 | -3 | 8 | 850 | MMF | 50 | 500 | 300 m (984 ft) |
| PSFP-4GD-M2LC05 | Dual LC | Multi-Rate - 1.063 Gbps 2.125 Gbps 4.25 Gbps |
1000Base-SX Fibre Channel FC-1,2,4 FICON |
Yes | 0 to 70C (32F to 158F ) |
-9 | -2.5 | -15 | 0 | 6 | 850 | MMF | 62.5 | 200 | 300 m (984 ft) |
| 50 | 500 | 500 m (1640 ft) |
|||||||||||||
| PSFP-1000-S2LC10 | Dual LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-LX / LH Fibre Channel FC-1 FICON SONET OC-24-LR-1 (Alternate to Cisco: |
No | 0 to 70C (32F to 158F ) |
-9.5 | -3.0 | -21.0 | -3.0 | 11.5 | 1310 | MMF *** | 62.5 | 500 | 550 m (1,804 ft) |
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| SMF | ** | - | 10 km
(6.2 mi) |
||||||||||||
| PSFP-1000D-S2LC10 | Dual LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-LX / LH Fibre Channel FC-1 FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-9.0 | -3.0 | -23.0 | -3.0 | 14.0 | 1310 | MMF *** | 62.5 | 500 | 550 m (1,804 ft) |
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| SMF | ** | - | 10 km
(6.2 mi) |
||||||||||||
| PSFP-1000D-S2LC10-XT | Dual LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-LX / LH Fibre Channel FC-1 FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-9.0 | -3.0 | -23.0 | -3.0 | 14.0 | 1310 | MMF *** | 62.5 | 500 | 550 m (1,804 ft) |
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| 50 | 400 | 550 m (1,804 ft) |
|||||||||||||
| SMF | ** | - | 10 km (6.2 mi) |
||||||||||||
| PSFP-4GD-S2LC10 | Dual LC | Multi-Rate - 1.063 Gbps 2.125 Gbps 4.25 Gbps |
1000Base-LX / LH Fibre Channel FC-1,2,4 FICON |
Yes | 0 to 70C (32F to 158F ) |
-8.0 | 0.0 | -18.0 | -3.0 | 10.0 | 1310 | SMF | ** | - | 10,000 m (32,821 ft) |
| PSFP-1000D-S2LC20 | Dual LC | 1.25 Gbps | 1000Base-EX Fibre Channel FICON (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-9.0 | -3.0 | -23.0 | -3.0 | 14.0 | 1310 | SMF | ** | - | 20 km (12.4 mi) |
| PSFP-1000D-S2LC20-XT | Dual LC | 1.25 Gbps | 1000Base-EX Fibre Channel FICON (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-9.0 | -3.0 | -23.0 | -3.0 | 14.0 | 1310 | SMF | ** | - | 20 km (12.4 mi) |
| PSFP-2GD-S2LC20 | Dual LC | up to 2.67 Gbps | 1000Base-LX / LH Fibre Channel FC-2 FICON GR253 SONET OC-48 G.957 SDH STM-16 |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -18.0 | -3.0 | 13.0 | 1310 | SMF | ** | - | 20,000 m (65,617 ft) |
| PSFP-1000D-S2LC40 | Dual LC | 1.25 Gbps | 1000Base-EX Fibre Channel FICON (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -23.0 | -3.0 | 18.0 | 1310 | SMF | ** | - | 40 km (25 mi) |
| PSFP-1000D-S2LC40-XT | Dual LC | 1.25 Gbps | 1000Base-EX Fibre Channel FICON (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-5.0 | 0.0 | -23.0 | -3.0 | 18.0 | 1310 | SMF | ** | - | 40 km (25 mi) |
| PSFP-1000D-S2LC80 | Dual LC | 1.25 Gbps | 1000Base-ZX Fibre Channel FICON (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -23.0 | -3.0 | 23.0 | 1550 | SMF | ** | - | 80 km (50 mi) |
| PSFP-1000D-S2LC80-XT | Dual LC | 1.25 Gbps | 1000Base-ZX Fibre Channel FICON (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
0.0 | 5.0 | -23.0 | -3.0 | 23.0 | 1550 | SMF | ** | - | 80 km (50 mi) |
Protocols: Fast Ethernet, SONET OC-3, G.957, SDH STM-1 |
|||||||||||||||
| PSFP-100-M2LC2 | Dual LC | Up to 155 Mbps | 100Base-FX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
No | 0 to 70C (32F to 158F ) |
-19.0 | -14.0 | -32.0 | -3.0 | 13.0 | 1310 | MMF | 50.0 | 500 | 5km * (3.1 mi) |
| 62.5 | 2km (1.2 mi) |
||||||||||||||
| PSFP-100D-M2LC2-XT | Dual LC | Up to 155 Mbps | 100Base-FX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-20.0 | -14.0 | -31.0 | -3.0 | 11.0 | 1310 | MMF | 50.0 | 500 | 5km * (3.1 mi) |
| 62.5 | 2km (1.2 mi) |
||||||||||||||
| PSFP-100D-M2LC05 | Dual LC | Up to 155 Mbps | 100Base-SX SONET OC-3 SDH STM-1 |
Yes | 0 to 70C (32F to 158F ) |
-8.0 | -3.0 | -19.0 | -3.0 | 11.0 | 850 | MMF | 50.0 | 500 | 550 m (1804 ft) |
| 62.5 | 200 | 300 m (990 ft) |
|||||||||||||
| PSFP-100D-S2LC10 | Dual LC | up to 155 Mbps | 100Base-LX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 | SMF | ** | - | 10km (6.2 mi) |
| PSFP-100D-S2LC10-XT | Dual LC | up to 155 Mbps | 100Base-LX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 | SMF | ** | - | 10km (6.2 mi) |
| PSFP-100D-S2LC40 | Dual LC | up to 155 Mbps | 100Base-EX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF | ** | - | 40km (25 mi) |
| PSFP-100D-S2LC80 | Dual LC | up to 155 Mbps | 100Base-ZX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF | ** | - | 80km (50 mi) |
* 1db/km multimode 50/125 micron fiber cable
** ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
*** A mode-conditioning adapter as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning adapter for 62.5-um fibers has a different specification from the mode-conditioning adapter for 50-um fibers.
Select a High Speed Model below to obtain a Part Number -----OR----- Click Here to view Fast Ethernet, SONET OC-3, G.957, SDH STM-1 Models
Single Fiber Models Recommended use in pairs
SFP Model |
Connector |
Speed |
Type |
DOM / DMI |
Case Temp |
Transmit |
Receive |
Power
Budget
(dB) |
Wave-
length (nm) |
Fiber
Type |
Core
Size
(um) |
Operating
Distance
|
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(dBm) |
(dBm) |
||||||||||||||
Min |
Max |
Min |
Max |
||||||||||||
| PSFP-1000D-M1LC2D | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-U Fibre Channel FICON SONET OC-24-LR-1 |
Yes | 0 to 70C (32F to 158F ) |
-10 | -4.0 | -22.0 | -3.0 | 12.0 | 1550 / 1310 | MMF | ** | 2 km (1.24 mi) |
|
| PSFP-1000D-M1LC2U | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-U Fibre Channel FICON SONET OC-24-LR-1 |
Yes | 0 to 70C (32F to 158F ) |
-10 | -4.0 | -22.0 | -3.0 | 12.0 | 1310 / 1550 | MMF | ** | 2 km (1.24 mi) |
|
| PSFP-1000-S1LC10U | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-U Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
No | 0 to 70C (32F to 158F ) |
-9.0 | -3.0 | -20.0 | -3.0 | 11.0 | 1310 / 1490 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-1000-S1LC10D | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-D Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
No | 0 to 70C (32F to 158F ) |
-9.0 | -3.0 | -20.0 | -3.0 | 11.0 | 1490 / 1310 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-1000D-1LC10U-XT | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-U Fibre Channel FICON SONET OC-24-LR-1 |
Yes | -40 to 85C (-40F to 185F ) |
-9.0 | 0.0 | -23.0 | -3.0 | 14.0 | 1310 / 1490 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-1000D-1LC10D-XT | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX10-D Fibre Channel FICON SONET OC-24-LR-1 |
Yes | -40 to 85C (-40F to 185F ) |
-9.0 | 0.0 | -23.0 | -3.0 | 14.0 | 1490 / 1310 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-1000D-S1LC40U | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -23.0 | -3.0 | 18.0 | 1310 / 1490 | SMF | ** | 40 km (25 mi) |
|
| PSFP-1000D-S1LC40D | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -23.0 | -3.0 | 18.0 | 1490 / 1310 | SMF | ** | 40 km (25 mi) |
|
| PSFP-1000D-S1LC60U | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 GLC-BX-U-60 |
Yes | 0 to 70C (32F to 158F ) |
-1.0 | 4.0 | -26.0 | -3.0 | 25.0 | 1490 / 1550 | SMF | ** | 60 km (37 mi) |
|
| PSFP-1000D-S1LC60D | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 GLC-BX-D-60 |
Yes | 0 to 70C (32F to 158F ) |
-1.0 | 4.0 | -26.0 | -3.0 | 25.0 | 1550 / 1490 | SMF | ** | 60 km (37 mi) |
|
| PSFP-1000D-S1LC80U | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-1.0 | 4.0 | -26.0 | -3.0 | 25.0 | 1490 / 1550 | SMF | ** | 80 km (50 mi) |
|
| PSFP-1000D-S1LC80D | Single LC | Dual Rate - 1.25 Gbps, 1.063 Gbps |
1000Base-BX Fibre Channel FICON SONET OC-24-LR-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-1.0 | 4.0 | -26.0 | -3.0 | 25.0 | 1550 / 1490 | SMF | ** | 80 km (50 mi) |
|
Protocols: Fast Ethernet, SONET OC-3, SDH STM-1 |
|||||||||||||||
| PSFP-100D-S1LC10U | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-100D-S1LC10U-XT | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-100D-S1LC10D | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-100D-S1LC10D-XT | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | -40 to 85C (-40F to 185F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | ** | 10 km (6.2 mi) |
|
| PSFP-100D-S1LC20U | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | ** | 20 km (12.4 mi) |
|
| PSFP-100D-S1LC20D | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | ** | 20 km (12.4 mi) |
|
| PSFP-100D-S1LC40U | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -32.0 | -3.0 | 27.0 | 1310 / 1550 | SMF | ** | 40 km (25 mi) |
|
| PSFP-100D-S1LC40D | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -32.0 | -3.0 | 27.0 | 1550 / 1310 | SMF | ** | 40 km (25 mi) |
|
| PSFP-100D-S1LC80U | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -32.0 | -3.0 | 27.0 | 1490 / 1550 | SMF | ** | 80 km (50 mi) |
|
| PSFP-100D-S1LC80D | Single LC | Up to 155 Mbps | 100Base-BX SONET OC-3 SDH STM-1 (Alternate to Cisco: |
Yes | 0 to 70C (32F to 158F ) |
-5.0 | 0.0 | -32.0 | -3.0 | 27.0 | 1550 / 1490 | SMF | ** | 80 km (50 mi) |
|
**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
| Single Mode / Single Fiber |
|---|
Connect copper ports over a single fiber strand ( also referred to as “Bi-Directional” BiDi )
PSFP-1000-S1LC10UPSFP-1000-S1LC10DThe majority of installations for single mode fiber media converters are of the “dual connector” or “dual fiber” type where one fiber connection is used for transmit, the other for receive. These are physically “crossed” to match up the Transmit/Receive links. However, to reduce costs, or where there are limits on available fiber, WDM technology may be utilized. WDM uses separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength. Thus, a single fiber can carry many separate wavelength signals or channels simultaneously. So remember, if Single Strand fiber is used, you will need an “Up” Media Converter on one side and a “Down” Media Converter on the other for copper to fiber conversion. Perle offers a wide variety of Single Fiber (“Up/Down”) Media Converters to connect 10BaseT, Fast Ethernet and Gigabit to single fiber. Whether you need Managed or Unmanaged, Standalone or Modular Chassis Based, 20km or 120km, Perle has the right model to meet your fiber conversion requirement. |
Select a Model to obtain a Part Number
CWDM ( coarse wavelength division multiplexing ) Models
SFP Model |
Connector |
Speed |
Type |
DOM / DMI |
Case Temp |
Transmit |
Receive |
Power
Budget
(dB) |
Wave-
length (nm) |
Fiber
Type |
Core
Size
(um) |
Operating
Distance
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(dBm) |
(dBm) |
|||||||||||||
Min |
Max |
Min |
Max |
|||||||||||
| PSFP-CWDM-SFP-1470 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1470 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1490 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1490 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1510 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1510 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1530 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1530 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1550 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1550 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1570 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1570 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1590 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1590 | SMF | ** | 80 km (50 mi) |
| PSFP-CWDM-SFP-1610 | Dual LC | up to 2.67 Gbps | 1000Base-CWDM Fibre Channel |
Yes | 0 to 70C (32F to 158F ) |
0.0 | 5.0 | -28.0 | -9.0 | 28.0 | 1610 | SMF | ** | 80 km (50 mi) |
**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
PSFP-1110-RJ45 | SFP Optical Transceiver
Part Number: 05071380
PSFP-1110-RJ45: 10/100/1000 Ethernet copper SFP
- Data Transfer Rate: 10/100/1000 Mbps Operation in Host Systems with SGMII Interface
- Autonegotion: Yes
- LOS Support: Yes
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- Operating Temperature: -40°C to 85°C
- Single +3.3 V Power Supply
- Power Consumption: Less than 1.3 Watts
- MTBF: over 3,000,000 hours
- RoHS Compliant and Lead-free
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Compliance with specifications for IEEE-802.3-2002
- Compliance with FCC 47 CFR Part 15, Class B
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions
